Description
OBD2 Extension Cable Universal OBD2 Cable OBD2-DB9 Female Introduction:

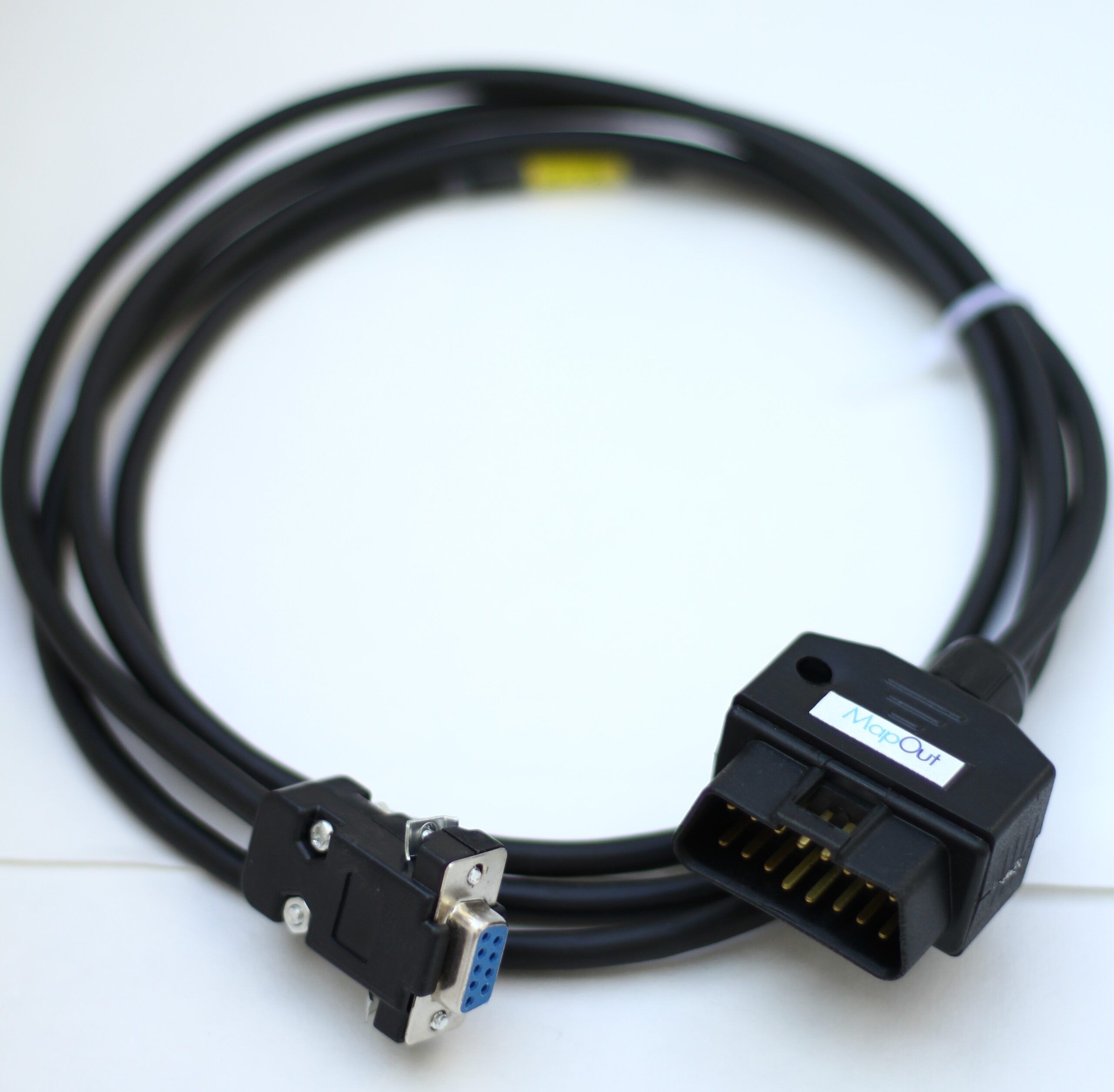

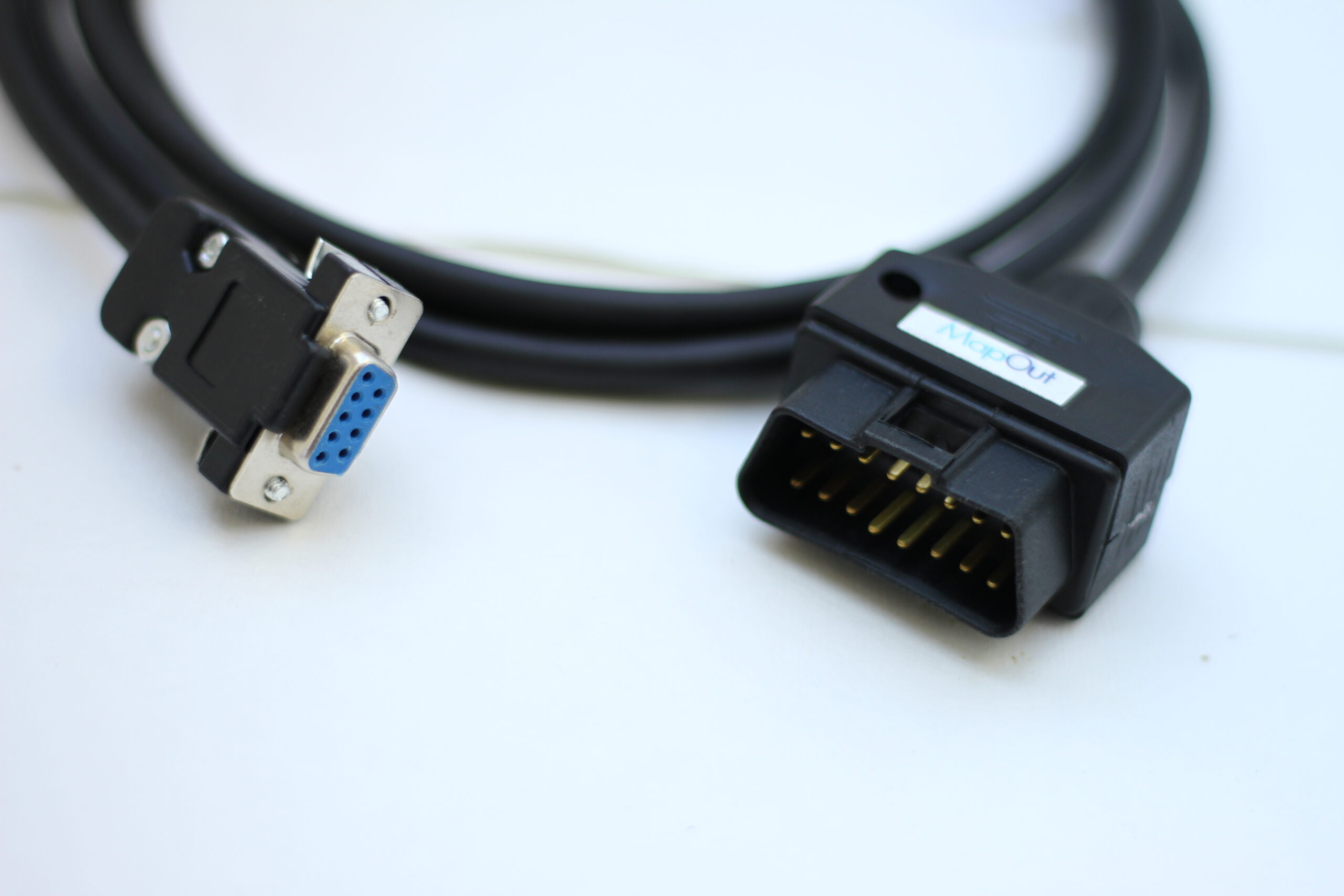

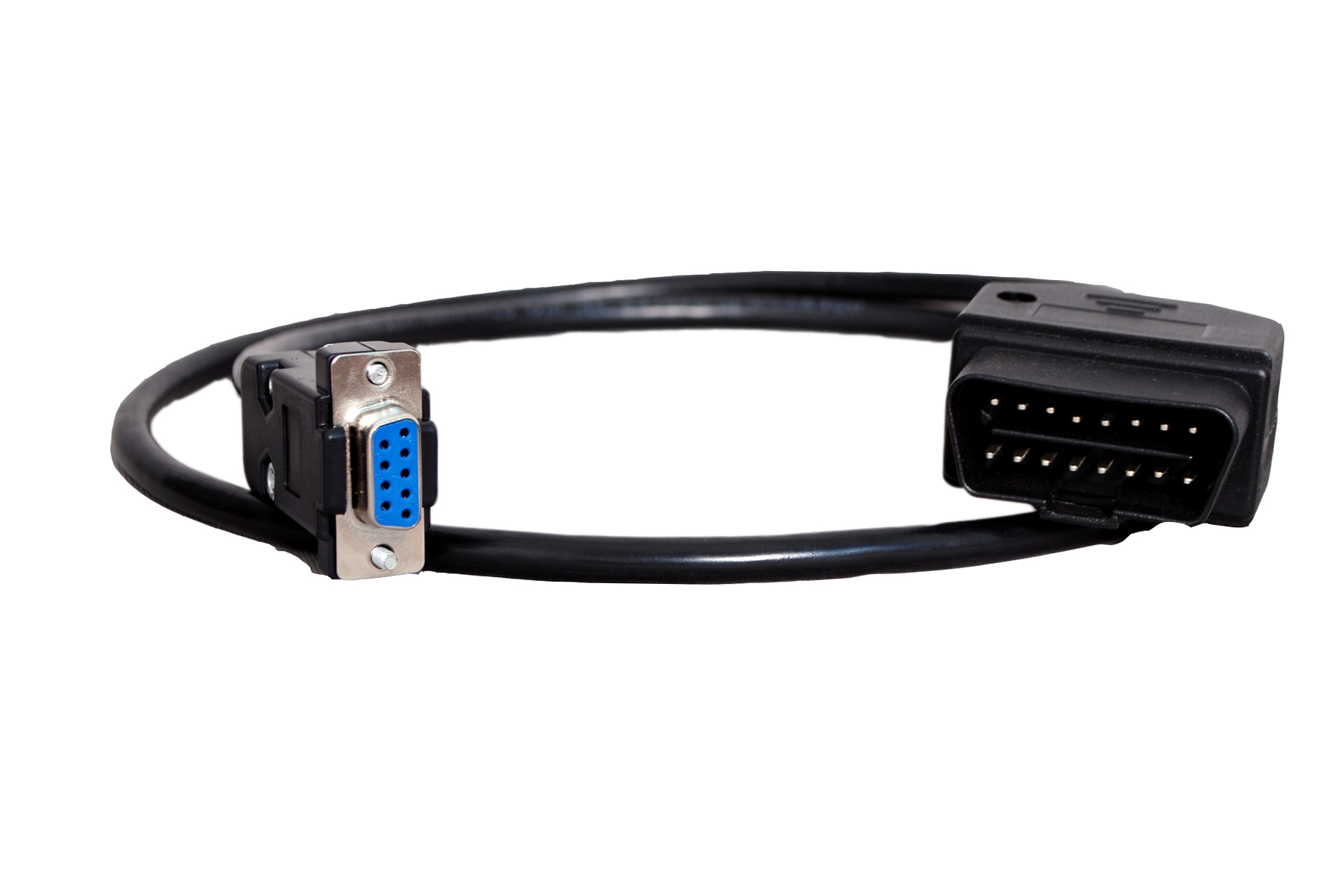

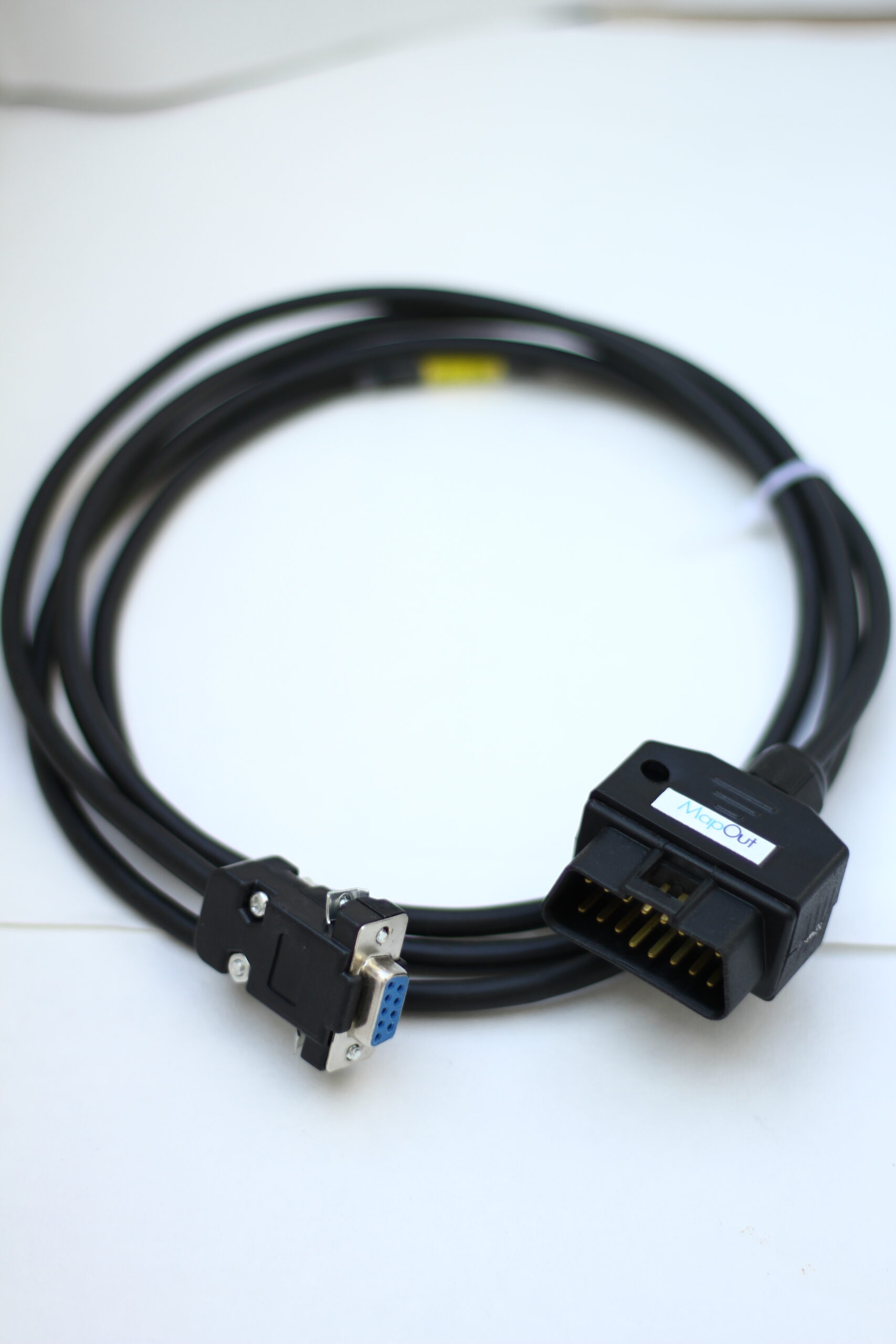

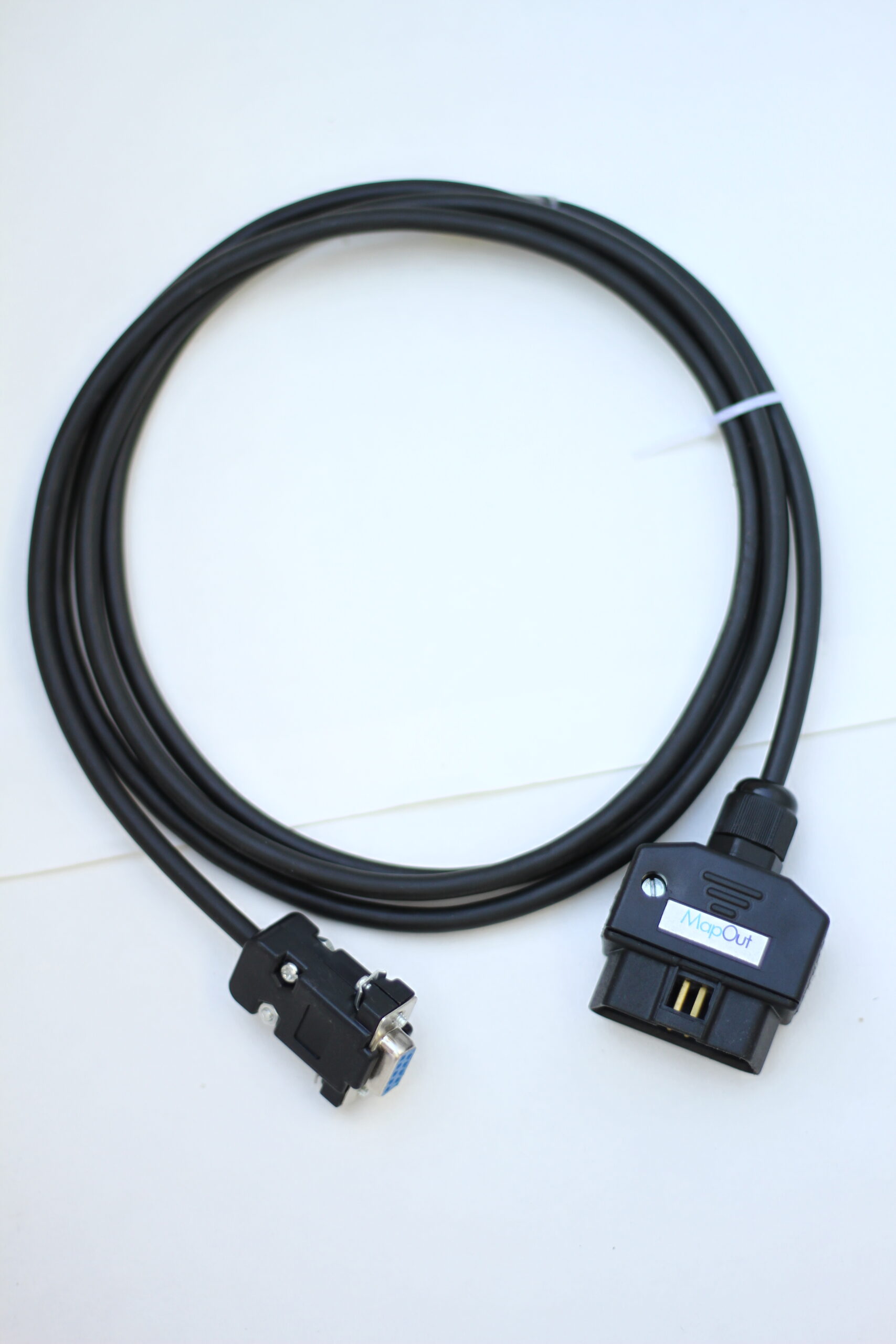

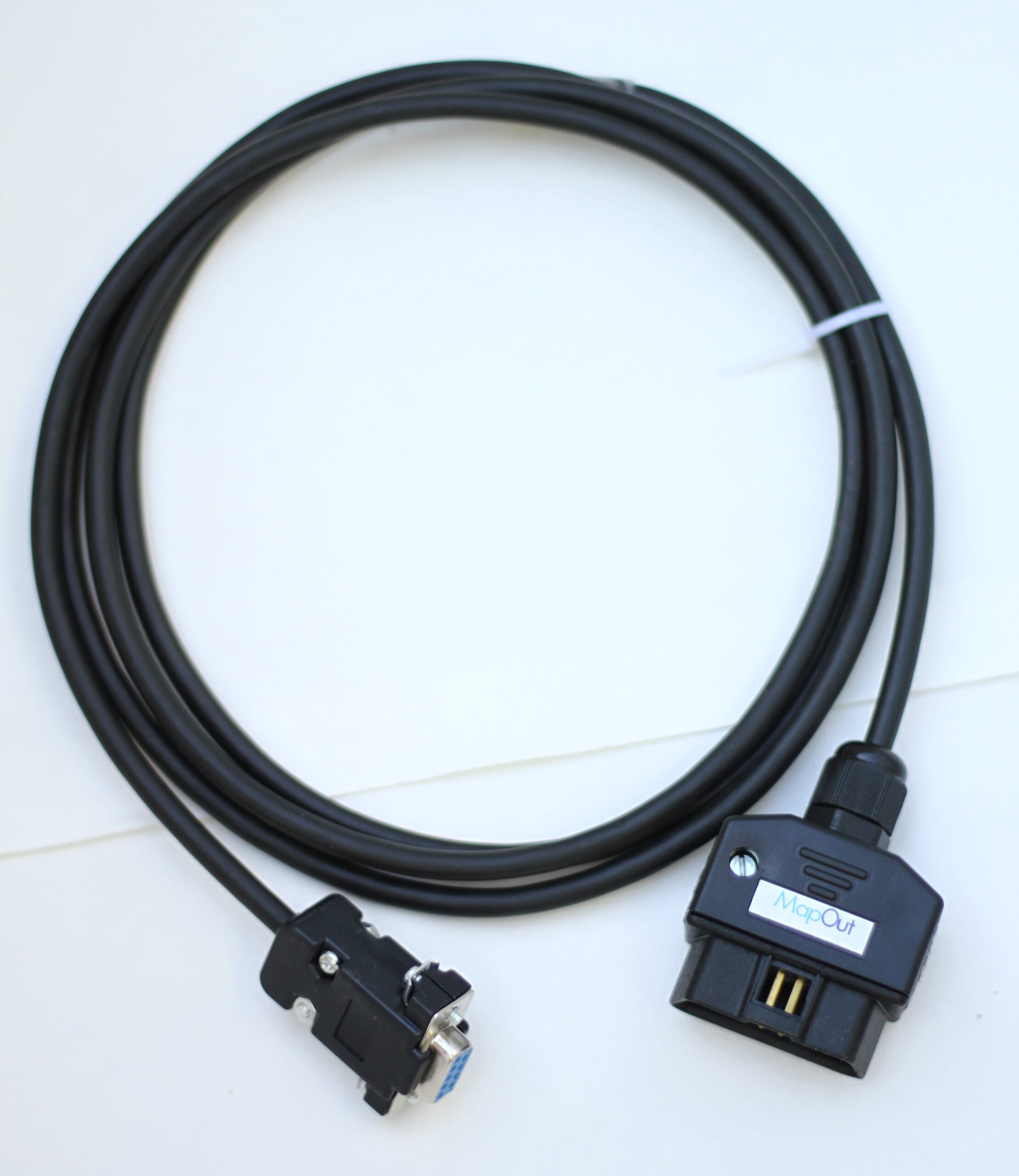

Universal OBD2 Extension Cable OBDII TO DB9 cable obd2 scanner cable/Cable Assembly enables you to connect with your car’s OBD-II system. You just need to plug the OBD II connector on one end to your car and the other end into some sort of hardware interface that has a DB9 connector, like our OBD II click.
- Cable Type: Round
- Color: Black

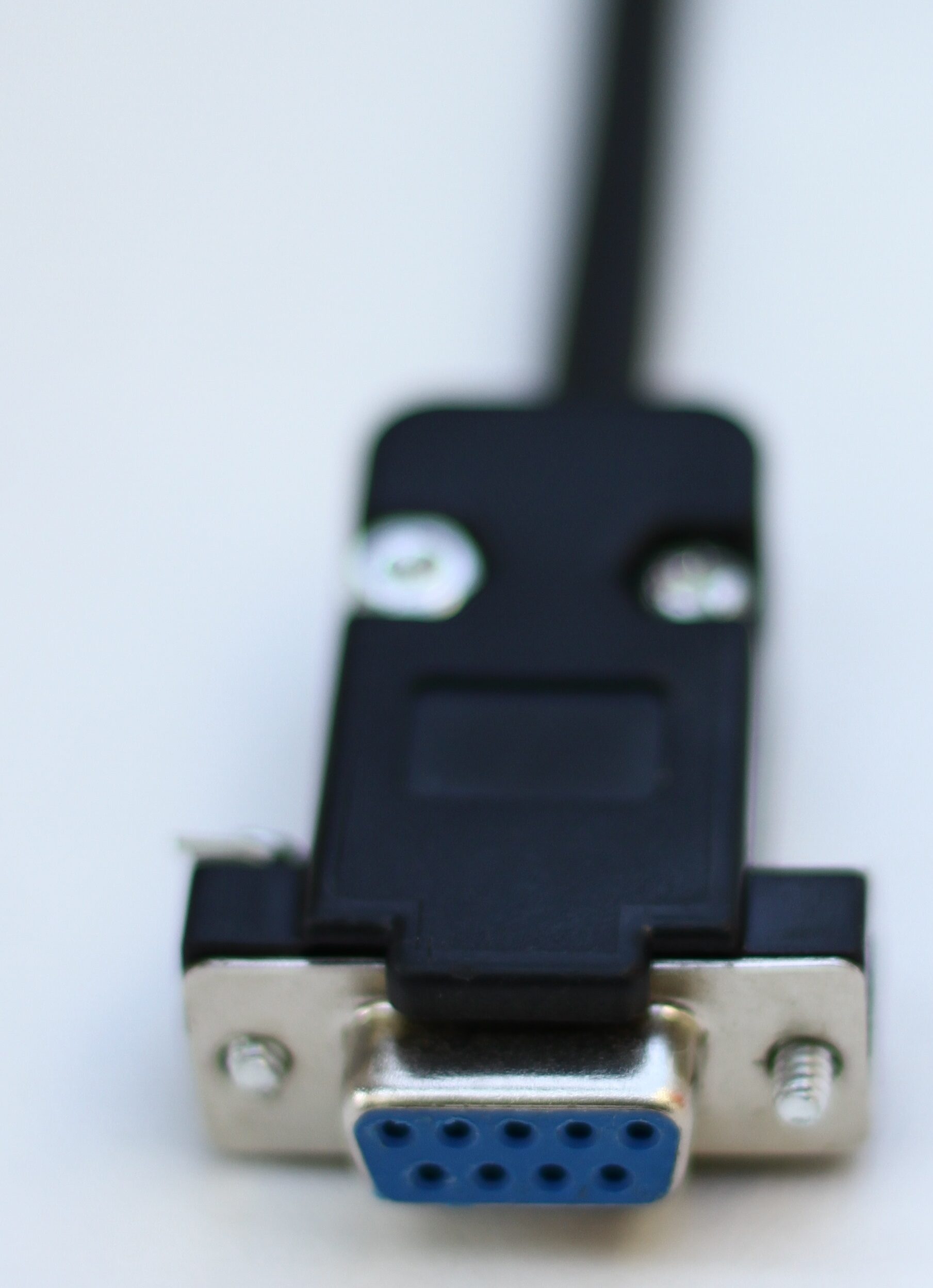

- Connector Type: D-Sub 09 pos Female to OBD-II Male
- Length: 5.00′ (1.52m)
- Shielding: Unshielded
Universal OBDII TO DB9 Adapter Cable – Connect Your CAN Logger to Your Car/Vehicle Need to log OBD2 or raw CAN bus data from your car?
This 1.5-meter Universal OBDII TO DB9 adapter cable fits the connector found near your car’s steering wheel and lets you easily connect a CANedge/CLX000 CAN logger to start recording OBD2/CAN data.
USE CASES:
The OBD2-DB9 adapter cable is suited for use in passenger vehicles – incl. regular cars, taxis, light-duty vehicles. It’s also suited for use in the OBD2 connectors found in most heavy-duty vehicles (trucks, buses, …).
The cable lets you easily connect your CAN logger directly to the car’s CAN bus. Examples of use cases include e.g. vehicle fleet telematics and car hacking.
HOW TO INSTALL:

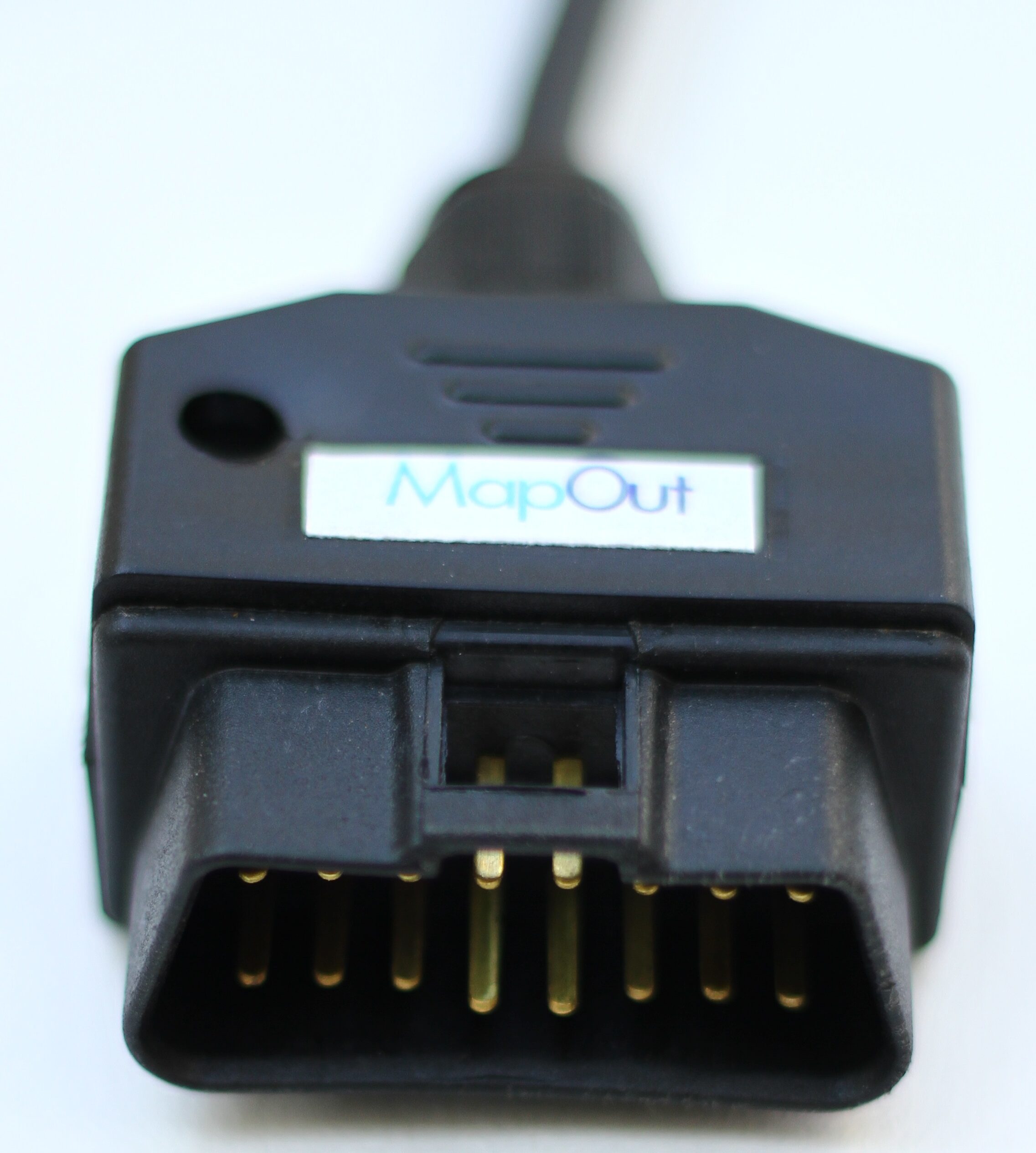

You simply locate the Universal OBD2 16-pin connector near your steering wheel inside your car. Note that in some cars it’ll be hidden behind a panel – if in doubt contact us.
HOW TO LOG & CONVERT OBD2 DATA:
To log OBD2 data, you need to request the specific parameter IDs (PIDs) by “polling” the CAN bus. The edge/CLX000 lets you send up to 64/20 custom request messages to the CAN bus. If the parameters are available from your vehicle, the ECUs will provide response messages. These can be converted using our free software/APIs and our free OBD2 DBC.
What is an OBDII Connector?
In OBD2 Extension Cable, obd2 scanner OBD stands for Onboard Built-in Diagnosis. As the name suggests it is a diagnosis system that is built into all modern cars (after 1996) which has a computer-based application that monitors the performance of your car through your speed, mileage, fuel emission data, etc. Apart from this it also measures some of the important vital parameters of an Engine. This complete system is called an ECU (Engine Control Unit).
This OBD2 Extension Cable,obd2 scanner, Cable Assembly are meant to be used only by the service guy to monitor the health of your Car and provide a diagnosis. Apart from this it also controls the warning lights on your Cars dashboard, Cable Assembly.
ECU OBD-II Female Connector Pinout Configuration
| Pin Number | Pin Name | Description |
| 1,3,8,9,11,12,13 | Blank | These pins are not standard and are vendor-specific. It is also not required for normal communication/interfacing |
| 2 | SAE J1850 Bus+ | This protocol uses Variable Pulse Width and is normally used by GM vehicles. This is the Bus positive pin of the protocol. |
| 10 | SAE J1850 Bus- | This protocol uses Variable Pulse Width and is normally used by GM vehicles. This is the Bus negative pin of the protocol. |
| 4,5 | Ground | The ground of complete system of the Car including chassis |
| 6 | ISO15765-4 CAN High | It follows a 2-wire CAN protocol at 1Mbps speed. This is the CAN high Pin |
| 14 | ISO15765-4 CAN Low | It follows a 2-wire CAN protocol at 1Mbps speed. This is the CAN low Pin |
| 7 | ISO 9141 – K Line | It follows asynchronous serial communication protocol, this pin is the K line |
| 8 | ISO 9141 – L Line | It follows asynchronous serial communication protocol, this pin is the L line |
OBD2 Extension Cable Warranty: NA
PRICING:
| Qty. | Unit Price |
| 1-2pcs | 999 Rs/Pc |
| 3-5pcs | 899 Rs/Pc |
| 6-10pcs | 799 Rs/Pc |
| 11-20pcs | 699 Rs/Pc |
| 21-50pcs | 599 Rs/Pc |
