TATA Samtec Cable Samtec Connector Diagnostic Tool Cable System Configuration:
TATA Samtec Cable Samtec Connector Diagnostic obd scanner cable/Following are the software and hardware specifications required for using the TML Diagnostic Tool.
Desktop / Laptop Configuration Requirements
The Software will require the following listed configuration TATA Samtec Cable Samtec Connector Diagnostic Tool of the desktop or laptop.
Diagnostic equipment details:
TATA Samtec Cable. The Electronics in the vehicle are increasing which raises a need to support complex diagnostics on the newer vehicles. It also supports the newer BS-II I & BS-IV vehicles diagnostic we have introduced the new Samtec VCI. The VCI is capable of diagnosing the ECU (Electronic Control Unit) on a K-Line interface. The VCI diagnostics tester comprises of a Vehicle Interface Unit, Custom Built applications software installed in the Laptop.
Software Pre-Requisites.
To run the Diagnostic software there is some software required to be installed on the system. It also users can find them on the Support ED website. https://ed.tatamotors.com.
This includes the following mentioned software.
Samtec Diagnostic Software Toolset
Connect the Samtec device between the desktop/laptop and the vehicle.
PC/ Laptop—-USB Cable—->Samtec Device (HS light/HS+)—-Samtec DB15 to OBDII Cable—->Vehicle.
TATA Samtec OBD2 Cable Samtec Connector Diagnostic Tool Cable:
TATA Samtec Cable Samtec Connector Diagnostic Tool Cable. Samtec cable OBD2 Male to DB26 Female OBD Cable is an improvement over OBD-II in both capability and standardization. In Samtec cable, the OBD2 Male OBDII Connector standard specifies the type of diagnostic connector and its pinout. It is also used in diagnostic Tata Motors Vehicles. the electrical signaling protocols available, and the messaging format. It also provides a candidate list of vehicle parameters to monitor along with how to encode the data for each. There is a pin in the connector that provides power for the scan tool from the vehicle battery, which eliminates the need to connect a scan tool to a power source separately.
TATA Samtec Cable Samtec Connector Diagnostic Tool Cable Samtec diagnostic Cable OBD2 Male-DB15 Male Cable:
That is your car telling you there is an issue. If you visit a mechanic, he will use an OBD2 scanner to diagnose the issue.
To do so, It also connects the OBD2 reader to the OBD2 16 pin connector near the steering wheel & It is also used in diagnostic Tata Motors Vehicles.
This lets him read OBD2 codes aka Diagnostic Trouble Codes (DTCs) to review and troubleshoot the issue.
Features:

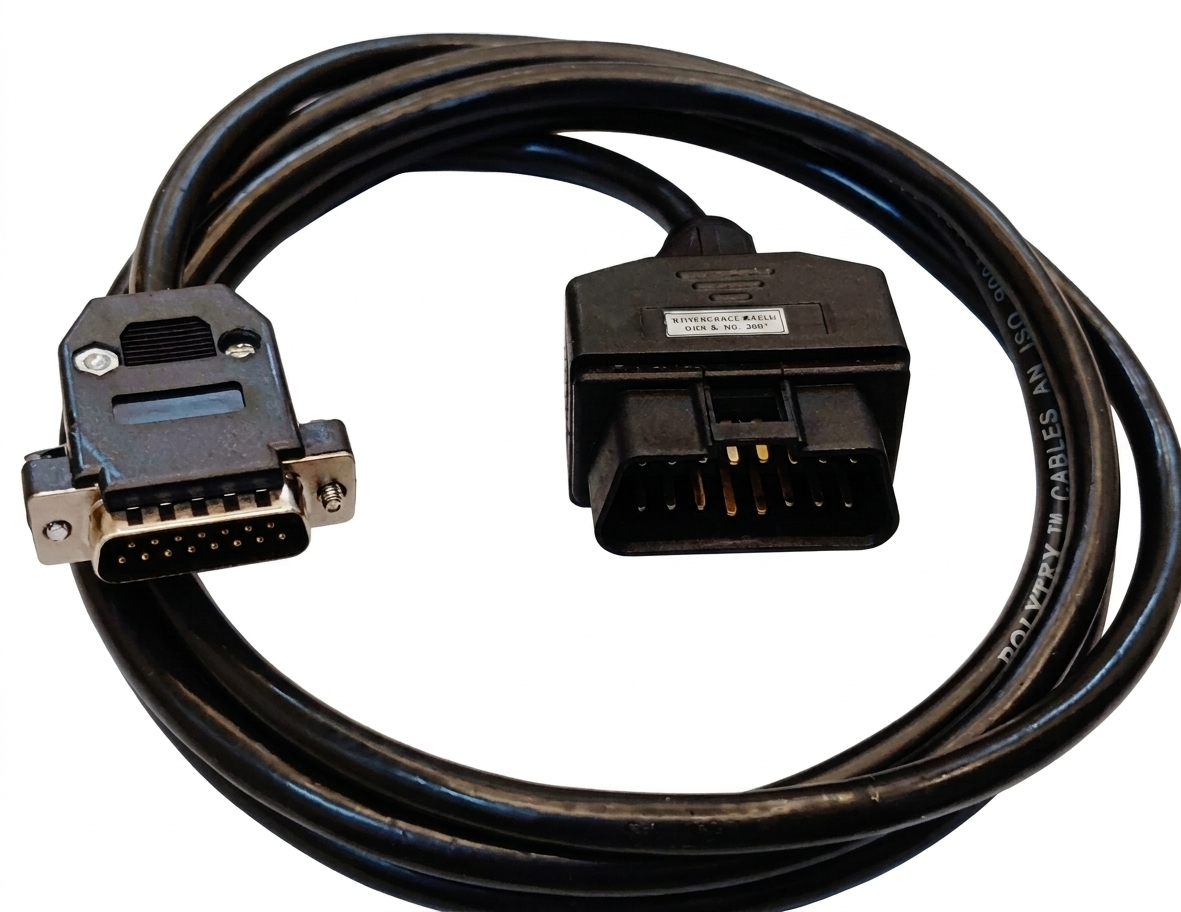

- Brand new and high-quality Samtec Diagnostic Cable OBD2 Male-DB15 Male obd scanner cable.
- It is also used in diagnostic Tata Motors Vehicles.
- It also connects your diagnostic interface and your vehicle with OBD-II compliant.
- Length: About 200cm.
- Weight: 300gm.
- OBD-II Plug: 16-pin male to the car.
- Mainly Used for Samtec Diagnostic Cable OBD2 Male-DB15 Male obd scanner cable Engine Company Vehicles.
- Cable core: 8 Core.
OBD Connector Pinout Configuration
| Pin Number | Pin Name | Description |
| 1,3,8,9,11,12,13 | Blank | These pins are not standard and are vendor-specific. It is also not required for normal communication/interfacing. |
| 2 | SAE J1850 Bus+ | This protocol uses Variable Pulse Width and is normally used by GM vehicles. This is also the Bus positive pin of the protocol. |
| 10 | SAE J1850 Bus- | This protocol uses Variable Pulse Width and is normally used by GM vehicles. This is also the Bus negative pin of the protocol. |
| 4,5 | Ground | The ground of complete system of the Car including chassis. |
| 6 | ISO15765-4 CAN High | It follows a 2-wire CAN protocol at 1Mbps speed. It also CAN high Pin. |
| 14 | ISO15765-4 CAN Low | It follows a 2-wire CAN protocol at 1Mbps speed. It also CAN low Pin. |
| 7 | ISO 9141 – K Line | It follows asynchronous serial communication protocol, It also Kline pin. |
| 8 | ISO 9141 – L Line | It follows asynchronous serial communication protocol, It also L line pin. |

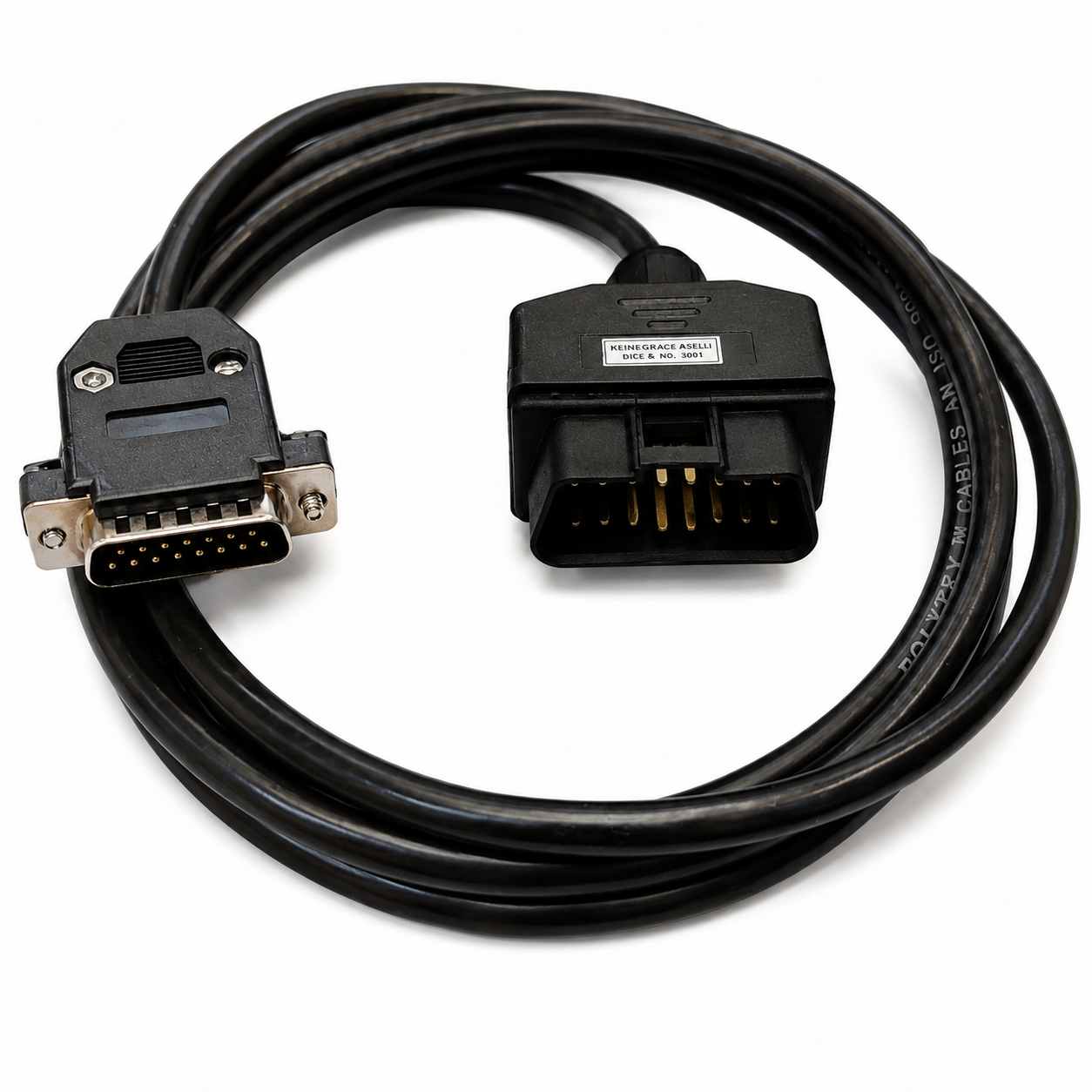

Brand new & it also has high-quality OBD2 Male to DB15 Male Diagnostic obd scanner cable. It also connects your diagnostic interface and your vehicle with OBD-II male compliant.
Length: About 200 cm, Weight: 209 gm, OBD-II.
core: 8 Core.
Plug: 16-pin male to car.
It is also used in diagnostic Tata Motors Vehicles.
Laptop Parameters:
CPU-
Core Type-Dual Core,Frequency-2.66Ghz,Cache Memory-a2.42MB,RAM-a1GB, Graphics Hardware-Vendor Configured,Display-800*600,Hard Drive Space-20GB, Sound Hardware-Vendor Configured, Software-Win XP 32/64Bit Note: These are recommended configurations.
