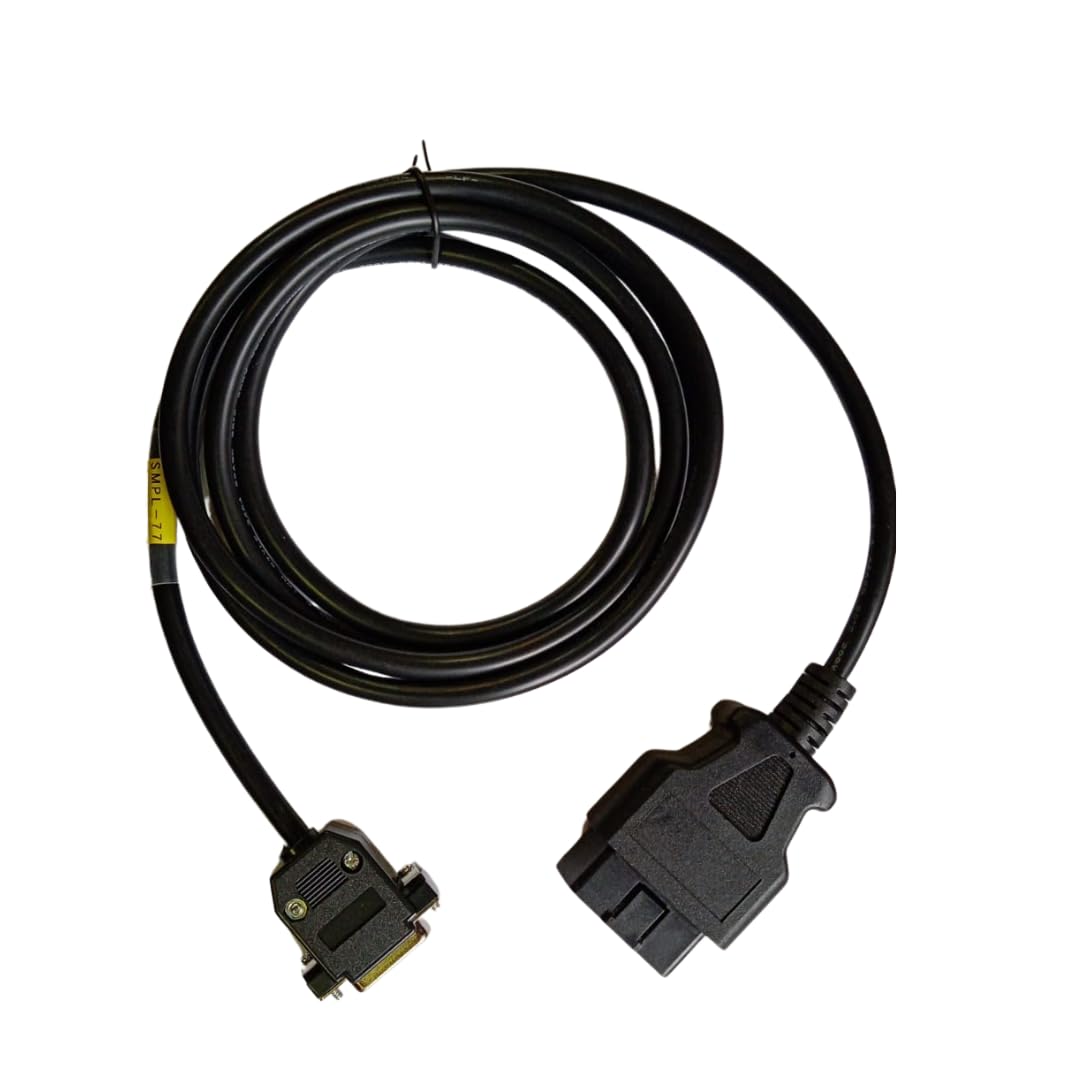

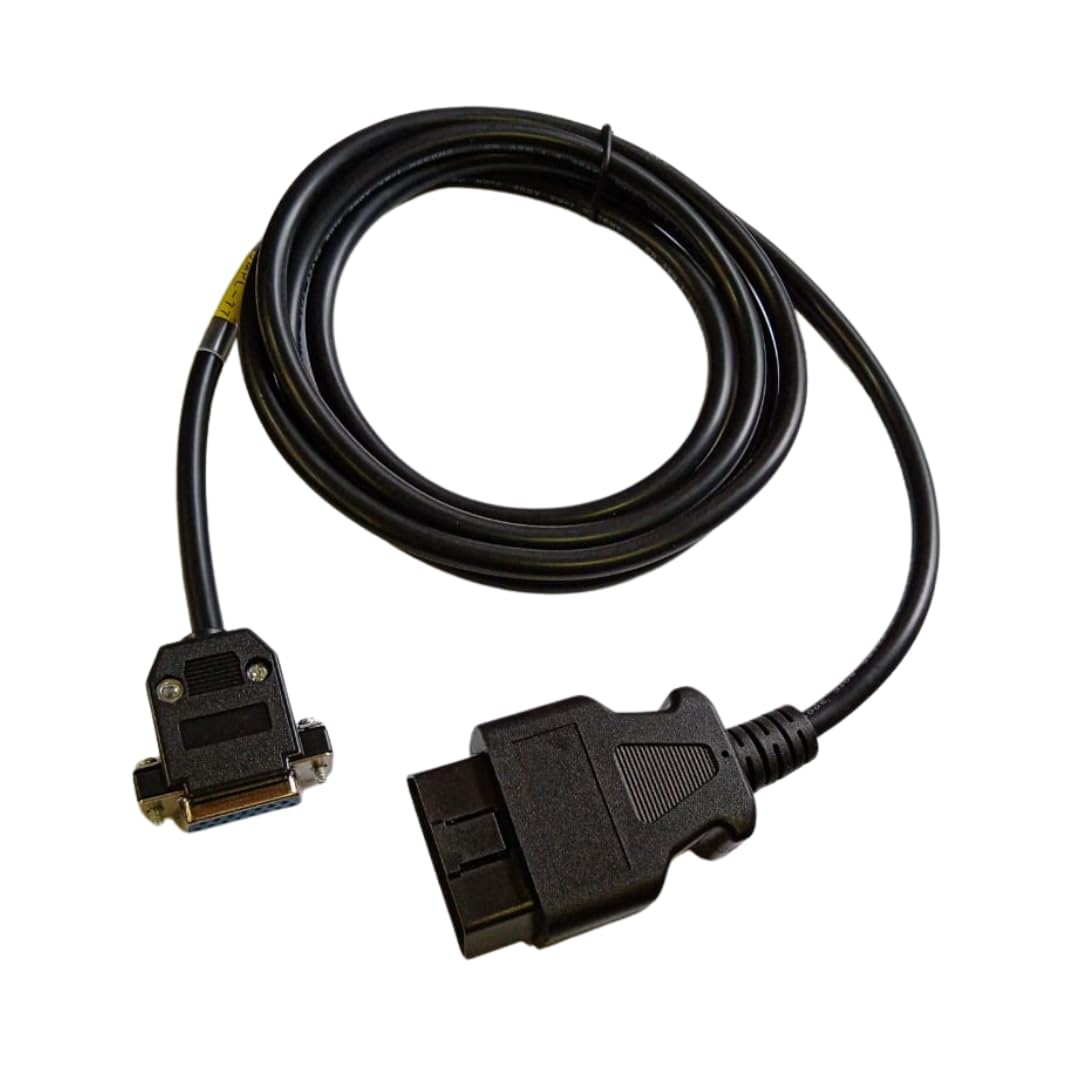

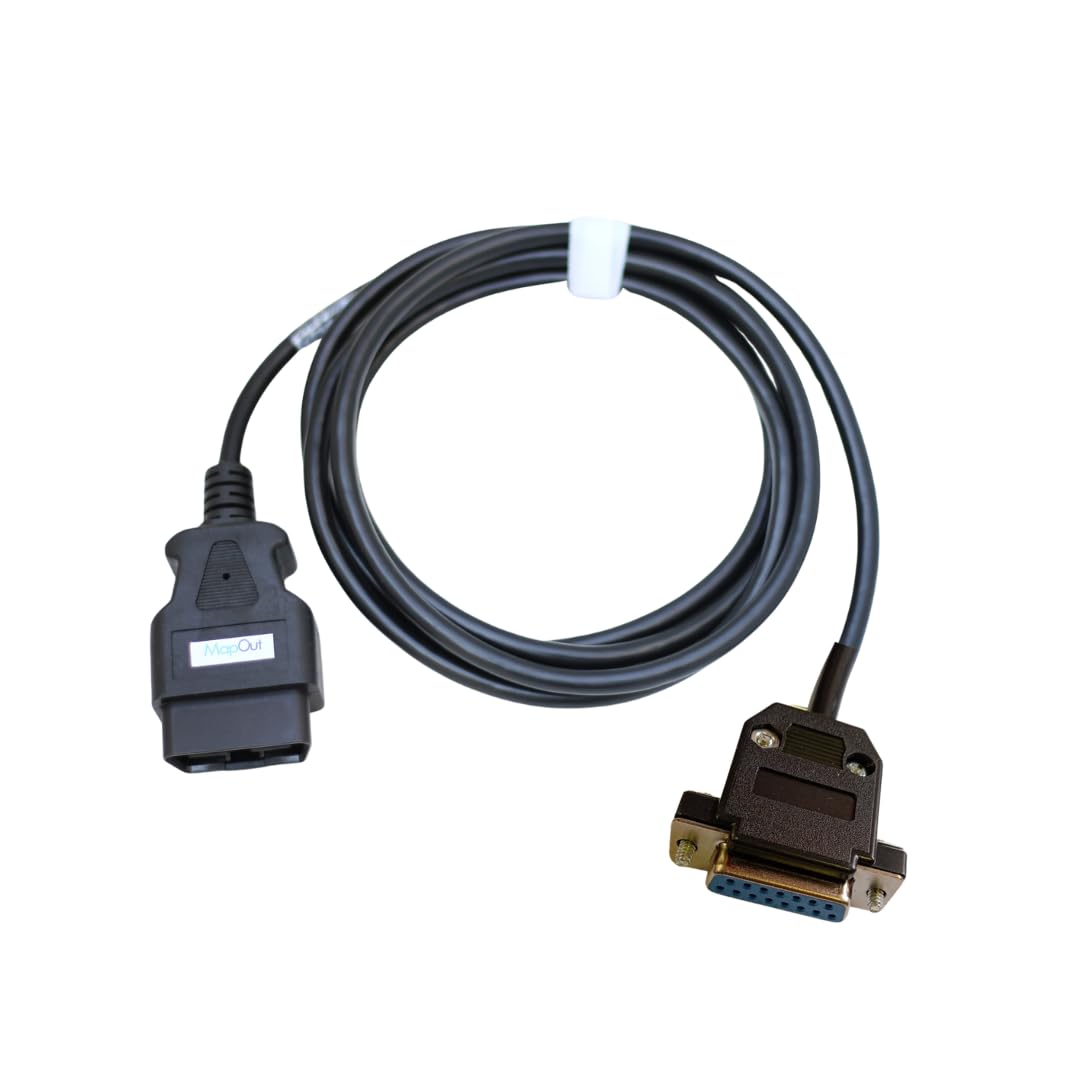

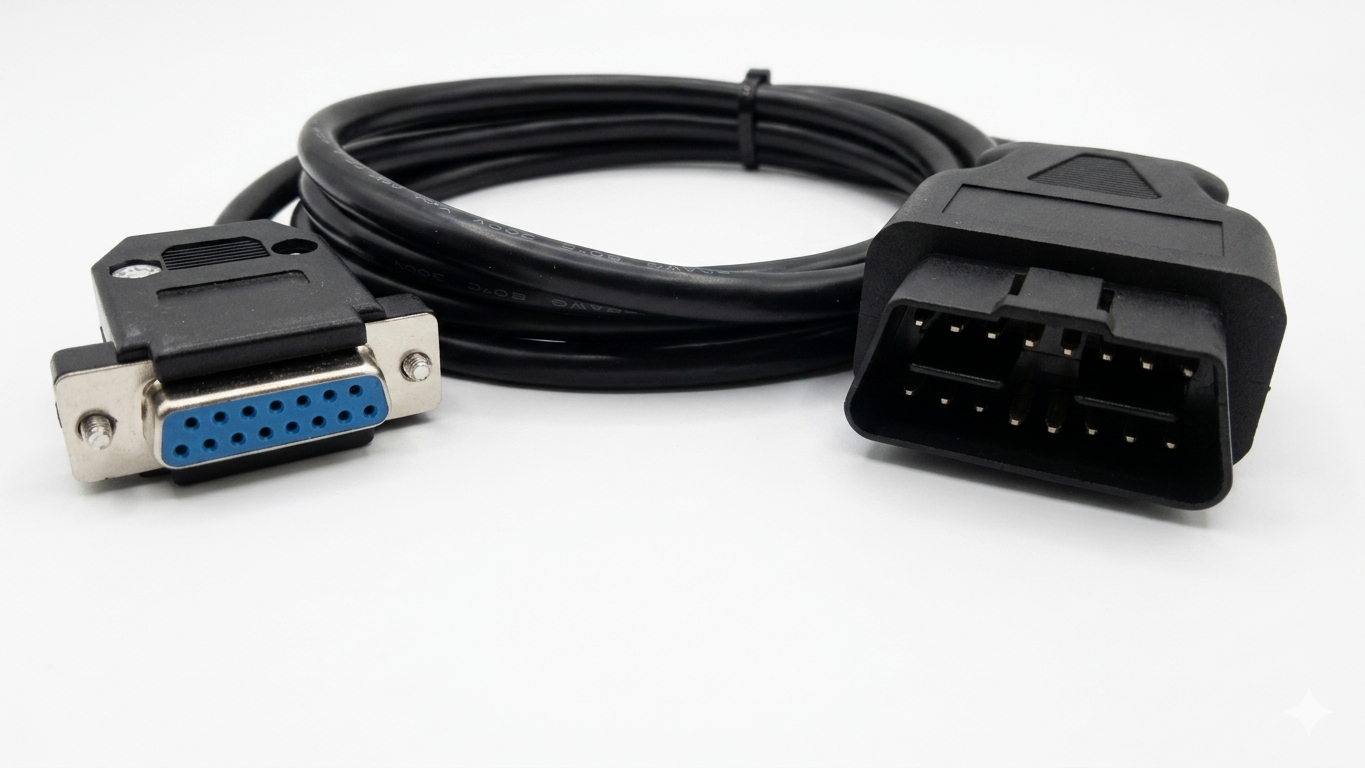

Ashok Leyland OBD2 Scan Tool Cable – OBD-II Male to DB15 Female Diagnostic Cable
Upgrade your vehicle diagnostics with this high-quality OBD2 scan tool cable designed specifically for Ashok Leyland vehicles. This durable OBD-II male to DB15 female cable ensures reliable communication between your diagnostic tool and vehicle ECU.
🔍 Key Features
- Reads and clears Diagnostic Trouble Codes (DTC)
- Displays Vehicle Identification Number (VIN)
- Supports live sensor data monitoring
- Access freeze frame data
- Enables active tests and control functions
- Strong molded connectors for durability
🚗 What is an OBD2 Scan Tool?
An OBD2 scanner cable connects your vehicle to a diagnostic tool, allowing technicians to read fault codes, monitor engine performance, and identify issues quickly. It is essential for modern vehicle maintenance and troubleshooting.
Compatible with all OBD-II compliant vehicles, this cable is ideal for engine diagnostics and emissions-related systems.
⚙️ Product Specifications
- Connector Type: OBD-II 16-pin male to DB15 female
- Cable Length: 1.5 – 2 meters
- Weight: Approx. 300g
- Core: 8-core cable
- Build: High-quality molded design
🔌 Where to Connect the OBD2 Cable?
The OBD2 port (DLC) is typically located under the dashboard, near the steering wheel. Plug the cable into the port and connect it to your diagnostic tool.
⚠️ Important: Always connect or disconnect when ignition is OFF.
📊 OBD2 Connector Pin Configuration
| Pin | Function | Description |
|---|---|---|
| 2 | SAE J1850 Bus+ | Used in GM vehicles (positive line) |
| 10 | SAE J1850 Bus- | Used in GM vehicles (negative line) |
| 4,5 | Ground | Vehicle chassis ground |
| 6 | CAN High | High-speed CAN communication |
| 14 | CAN Low | Low-speed CAN communication |
| 7 | K-Line | ISO 9141 communication |
| 8 | L-Line | Optional communication line |
💡 Why Choose This OBD2 Cable?
- Designed for Ashok Leyland diagnostic systems
- Ensures stable and accurate data transmission
- Easy plug-and-play installation
- Perfect for mechanics, workshops, and fleet maintenance
📦 Package Includes
1 × OBD-II Male to DB15 Female Diagnostic Cable
