Maruti bosch obd2 scanner Cable bosch car ecu diagnostic scanner
Maruti bosch obd2 scanner Cable bosch car ecu diagnostic scanner is an improvement over OBD-II in both capability and standardization. In Maruti Suzhuki Bosch Obd Cable OBDII Connector standard specifies the type of diagnostic connector and its pinout, the electrical signaling protocols available, and the messaging format. It also provides a candidate list of vehicle parameters to monitor along with how to encode the data for each. There is a pin in the connector that provides power for the scan tool from the vehicle battery, which eliminates the need to connect a scan tool to a power source separately.
Universal OBD2 Connector in Maruti Suzhuki Bosch Obd Cable, OBD2 Male cable to DB26 Female:
That is your car telling you there is an issue. If you visit a mechanic, he will use an OBD2 scanner to diagnose the issue.
To do so, he will connect the OBD2 reader to the OBD2 16 pin connector near the steering wheel.
This lets him read OBD2 codes aka Diagnostic Trouble Codes (DTCs) to review and troubleshoot the issue.
Features of Maruti bosch obd2 scanner Cable:

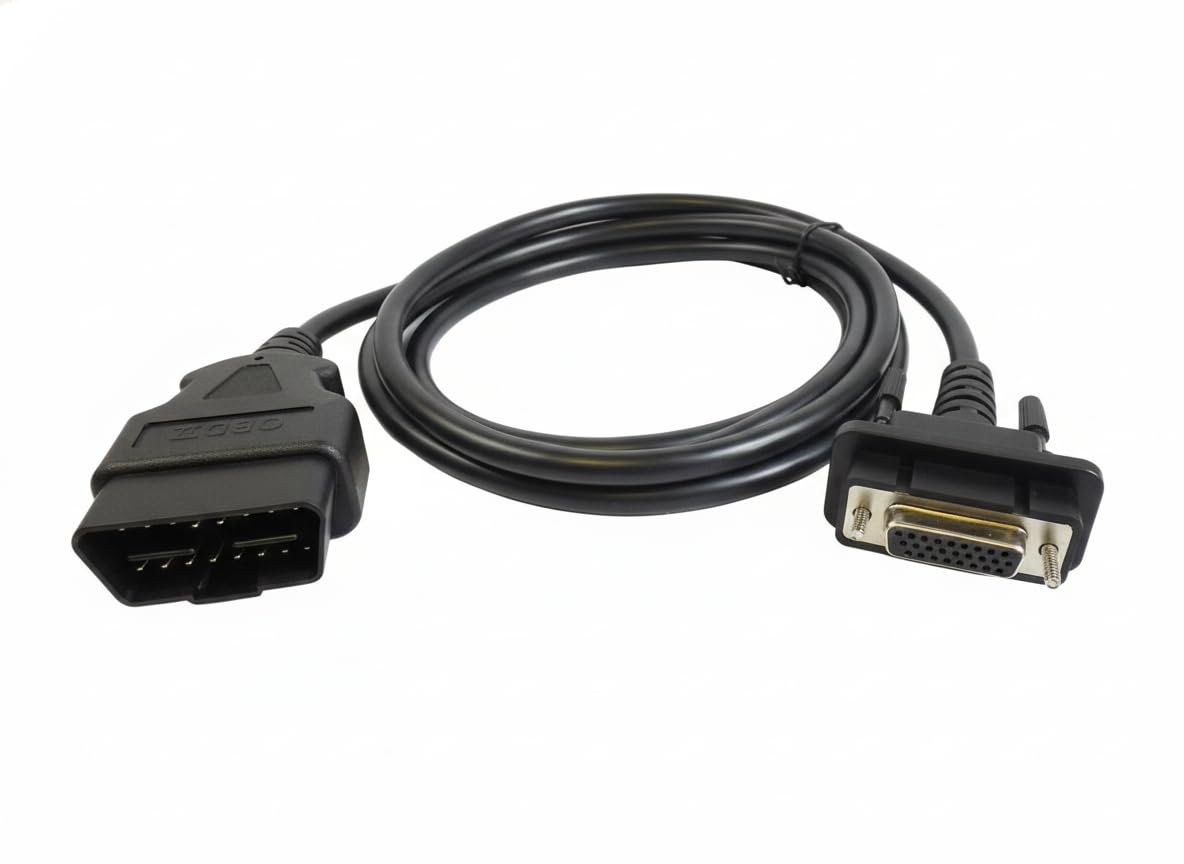

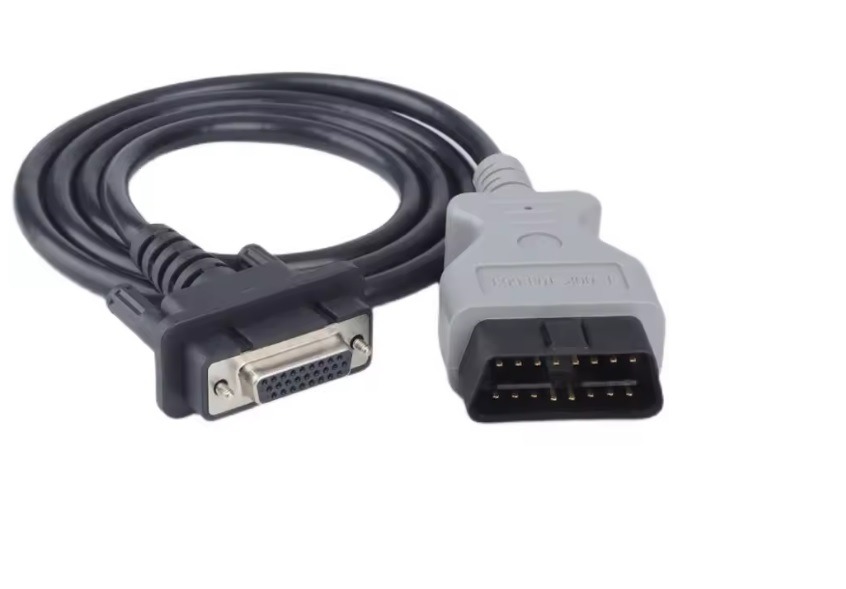

Brand new and high-quality OBD-II to DB26 Female Diagnostic cable.
For connecting your diagnostic interface and your vehicle with OBD-II compliant
Length: About 200cm
Weight: 300gm
OBD-II Plug: 16-pin male to car
Mainly Used for diagnostic Maruti Suzuki Bosch Obd Cable, OBD2 Male to DB26 Female Diagnostic Cable Engine company Vehicles
Cable core: 8 Core
OBD Connector Pinout Configuration in Maruti bosch obd2 scanner Cable:
Pin Number | Pin Name | Description |
1,3,8,9,11,12,13 | Blank | These pins are not standard and are vendor-specific. It is also not required for normal communication/interfacing |
2 | SAE J1850 Bus+ | This protocol uses Variable Pulse Width and is normally used by GM vehicles. This is the Bus positive pin of the protocol. |
10 | SAE J1850 Bus- | This protocol uses Variable Pulse Width and is normally used by GM vehicles. This is the Bus negative pin of the protocol. |
4,5 | Ground | The ground of complete system of the Car including chassis |
6 | ISO15765-4 CAN High | It follows a 2-wire CAN protocol at 1Mbps speed. It also CAN high Pin |
14 | ISO15765-4 CAN Low | It follows a 2-wire CAN protocol at 1Mbps speed. It also CAN low Pin |
7 | ISO 9141 – K Line | It follows asynchronous serial communication protocol, It also Kline Pin |
8 | ISO 9141 – L Line | It follows asynchronous serial communication protocol.It also L line Pin |
Maruti bosch obd2 scanner Cable,obd scanner for car For cable tool Male to DB-26 Female, it is a Brand new and high-quality DB26,
Female Diagnostic cable.
For connecting your diagnostic interface and your vehicle with 16-pin OBD-II compliant, The length is About 200cm The Weight is about 169gm 16-pin
OBD-II Plug: 16-pin male to a car mostly, Used for diagnostic Maruti Suzuki Bosch tool company Vehicles Cable
core: 16 Core
