Sale!

Original price was: ₹3990.Current price is: ₹2381.

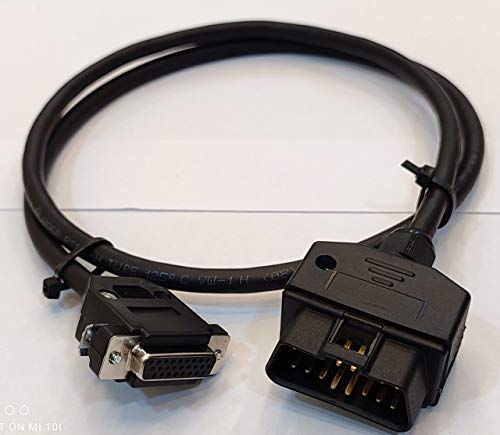

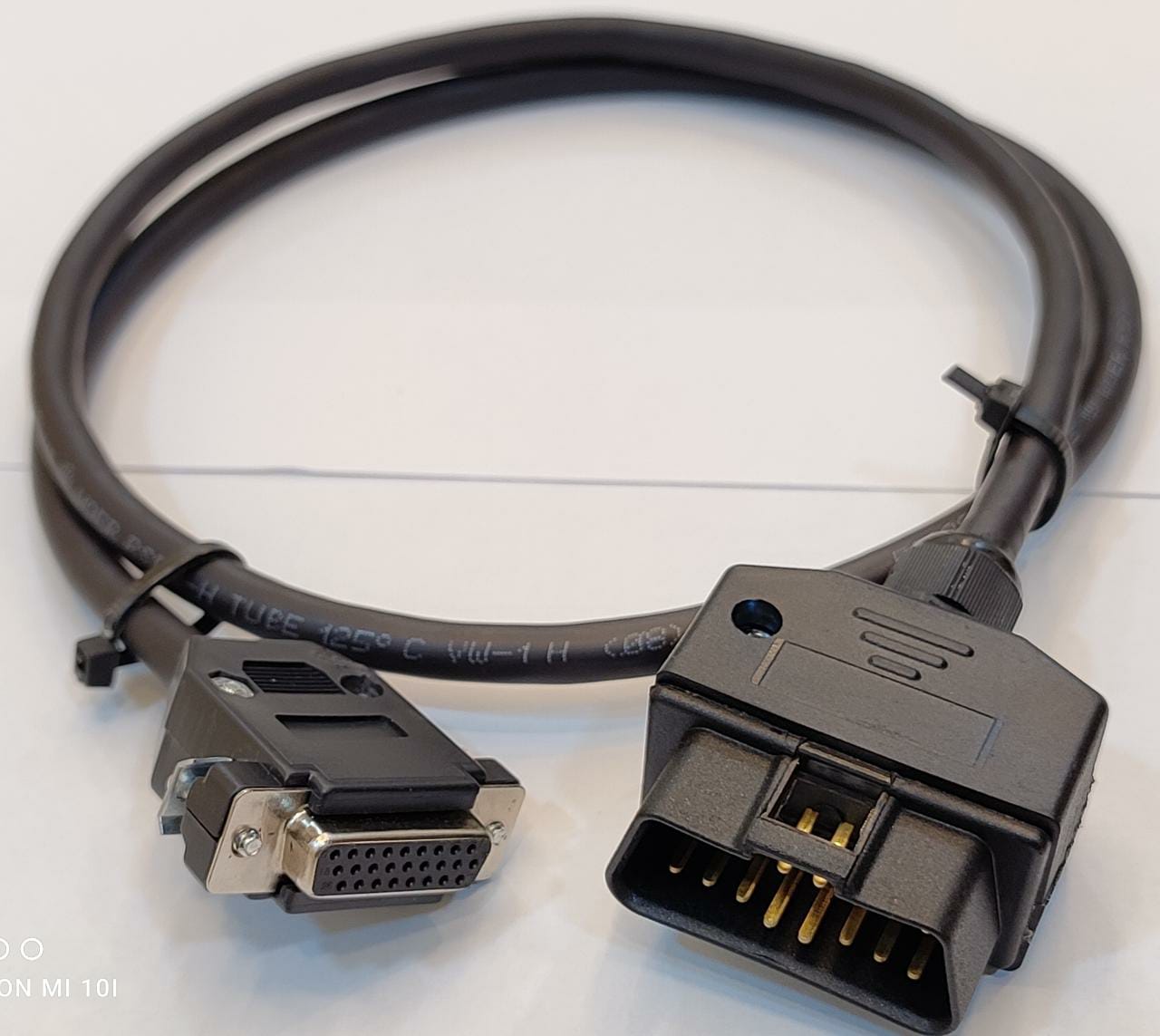

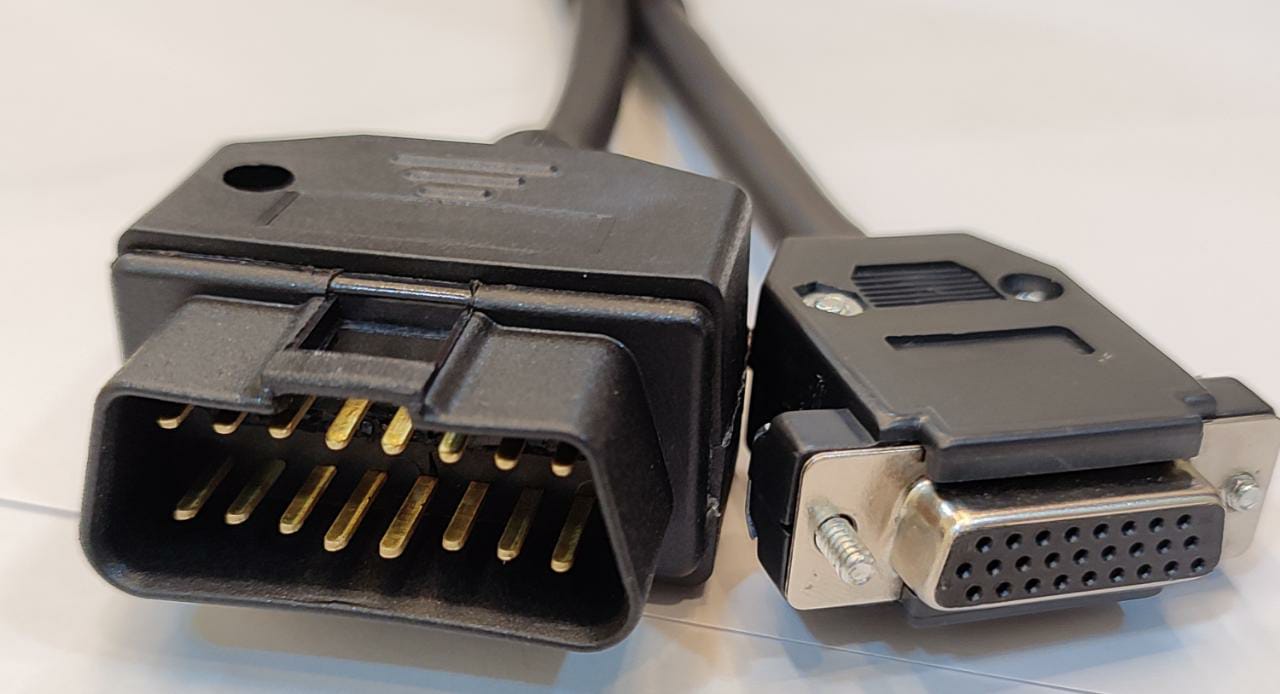

  • Brand new and high-quality OBD-II to DB26 Female Diagnostic cable.
  • For connecting your diagnostic interface and your vehicle with OBD-II compliant
  • Length: About 200cm
  • Weight: 169 gm
  • OBD-II Plug: 16-pin male to car
  • Mainly Used for diagnostic TATA Motors Cummins Engine company Vehicles
  • Cable core: 16 Core

Out of stock

Description

OBD Connector in Cummins Inline7 OBD2 Male Cable to DB26 Female :

Cummins Inline7, inline 7 data link adapter cable, engine cummins OBD2 Male to DB26 Female is an improvement over OBD-II in both capability and standardization. In Cummins Inline7 OBD2 Male OBDII Connector standard specifies the type of diagnostic connector and its pinout, the electrical signaling protocols available, and the messaging format. It also provides a candidate list of vehicle parameters to monitor along with how to encode the data for each. There is a pin in the connector that provides power for the scan tool from the vehicle battery, which eliminates the need to connect a scan tool to a power source separately.

Universal OBD2 Connector in Cummins Inline7 OBD2 Male cable to DB26 Female:

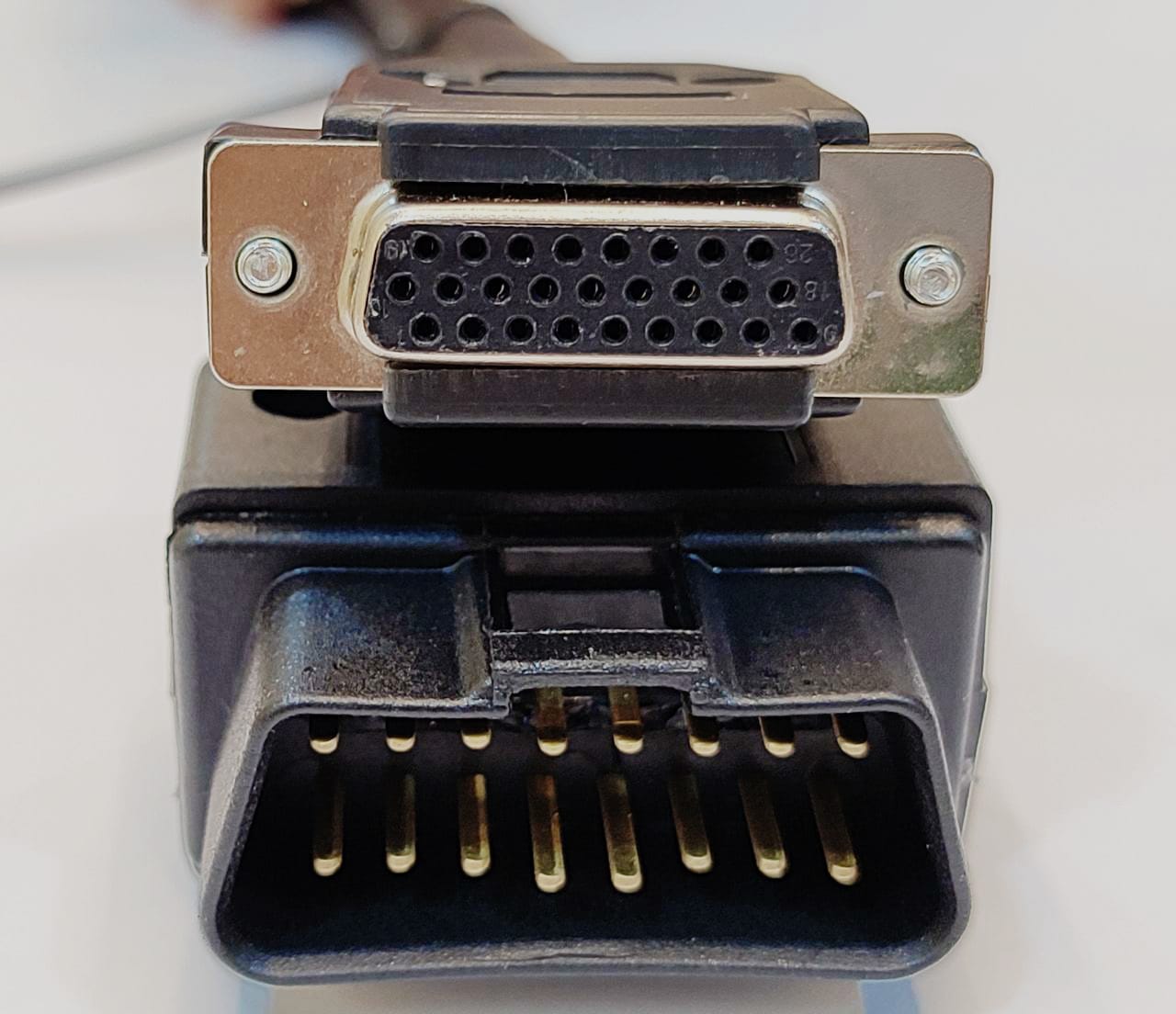

Female OBD-II connector on a car Female OBD Connector connector pinout – front view The OBDII specification provides for a standardized hardware interface—the female 16-pin (2×8) J1962 connector. Unlike the OBD-I connector, which was sometimes found, under the hood of the vehicle, the OBD-II connector is required to be within 2 feet (0.61 m) of the steering wheel.

In data link adapter SAE J1962 defines the pinout of the connector as:

The amount of diagnostic information available via Cummins Inline7 OBD2 Male OBDII has varied widely since its introduction in the early 1980s versions of on-board vehicle computers.

OBD2

That is your car telling you there is an issue. If you visit a mechanic, he will use an OBD2 scanner to diagnose the issue.

To do so, he will connect the OBD2 reader to the OBD2 16 pin connector near the steering wheel.

This lets him read OBD2 codes aka Diagnostic Trouble Codes (DTCs) to review and troubleshoot the issue.

Features of data link adapter cable/cummins inline7 :

Brand new and also high-quality OBD-II to DB26 Female Diagnostic cable/data link adapter cable.
For connecting your diagnostic interface and your vehicle with OBD-II compliant
Length: About 200cm
Weight: 169 gm
OBD-II Plug: 16-pin male to car
It also Used for diagnostic Cummins Inline7 OBD2 Male to DB26 Female Diagnostic Cable Engine company Vehicles
Cable core: 16 Core

In cummins inline7 OBD Connector Pinout Configuration

Pin NumberPin NameDescription
1,3,8,9,11,12,13BlankThese pins are not standard and are vendor-specific. It is also not required for normal communication/interfacing
2SAE J1850 Bus+This protocol uses Variable Pulse Width and is normally used by GM vehicles. This is also the Bus positive pin of the protocol.
10SAE J1850 Bus-This protocol uses Variable Pulse Width and is normally used by GM vehicles. This is also the Bus negative pin of the protocol.
4,5GroundThe ground of the complete system of the Car also includes the chassis
6ISO15765-4 CAN HighIt follows a 2-wire CAN protocol at 1Mbps speed. It also has the CAN high Pin
14ISO15765-4 CAN LowIt follows a 2-wire CAN protocol at 1Mbps speed. It also has the CAN low Pin
7ISO 9141 – K LineIt follows asynchronous serial communication protocol, It also has the Kline
8ISO 9141 – L LineIt follows asynchronous serial communication protocol, It also has the L line

Additional information

Weight0.196 kg
Dimensions18 × 18 × 3 cm
