Description

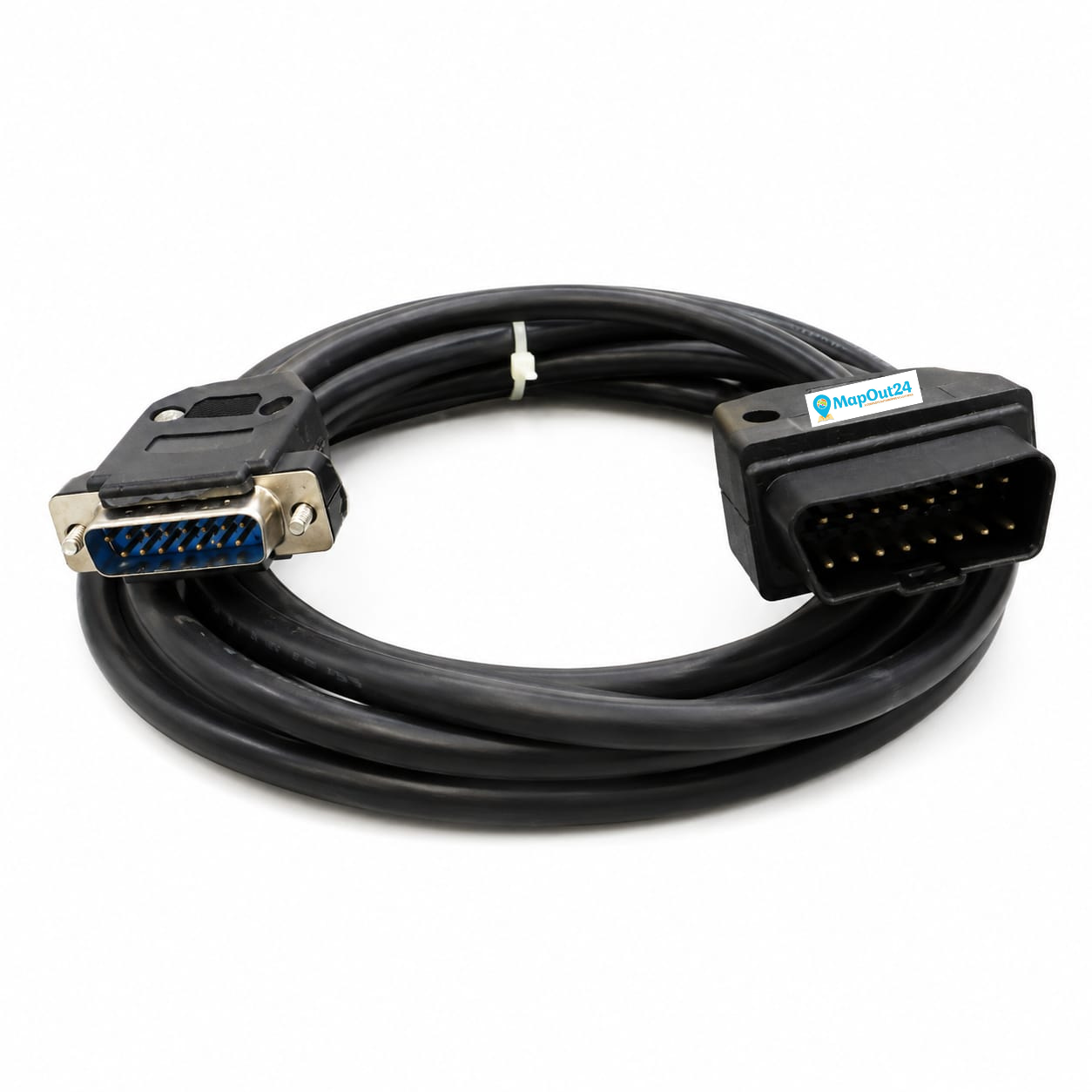

Garuda OBD Scan Tool Force Motor BS4 OBD Cable:
Force motors Garuda OBD Scanner Cable ECU Flashing OBD-II Male to DB-15 Male Cable is an improvement over obd2 scanner in both capability and it also standardization. In Force Motors Garuda, OBD Cable OBD-II Male to DB-15 Male Cable OBDII Connector standard specifies the type of diagnostic connector and its pinout, the electrical signaling protocols available, and the messaging format. It also provides a candidate list of vehicle parameters to monitor along with how to encode the data for each. A pin in the connector provides power for the scan tool from the vehicle battery, which eliminates the need to connect a scan tool to a power source separately.
Force Motors scanner
Covers All Force Motors Vehicles. It also Full System Scanning Engine ABS Automatic Transmission Meter. (Instrument Cluster)Body Computer Airbag Reverse Parking System Air Condition Music System. Immobilizer Special Function ECU Flushing Wiring Diagrams for All Mahindra vehicles Workshop Manuals for All Force Motors Vehicles Service Manuals for All Force Motors Vehicles Highlights Multi-protocol support (CAN and KWP 2000)Provides OBDII connectivity between the vehicle and the PC Network Monitoring & Analysis Wide input voltage range, 9 – 32 VDC Compact size PC Connectivity through USB High speed flashing of ECUs Can be used as a gateway between CAN and KWP 2000.
A real-time low-cost vehicle Network Monitoring, flashing, and diagnosis tool from GlobalEdge – Altran Group. Garuda Offers High-Speed ECU software reprogramming, Field flashing, and Supports SAE J2534 and RP1210B API for reprogramming and pass-through diagnostics.
Garuda OBD Scan Tool Force Motor BS4 OBD Cable:
It also has a Female OBD-II connector on a car Female telling OBD Connector pinout .– front view The OBDII specification provides for a standardized hardware interface.—the female 16-pin (2×8) J1962 connector. likely, the OBD-II connector, which was sometimes found, under the hood of the vehicle. the OBD-II connector is required to be within 2 feet (0.61 m) of the steering wheel.
In Force motors OBD Scanner, Garuda Cable ECU Flashing Cable OBD Flashtool Cable SAE J1962 defines the pinout of the connector as:
The amount of diagnostic information available via Mahindra Garuda OBD Cable OBD-II Male to DB-15 Male Cable OBDII has varied widely since its introduction in the early 1980s versions of on-board vehicle computers.
That is your car telling you there is an issue. If you visit a mechanic, he will use an OBD2 scanner to diagnose the issue.
To do so, he will also connect the OBD2 reader to the OBD2 16-pin connector near the steering wheel.
This lets him read OBD2 codes aka Diagnostic Trouble Codes (DTCs) to review and troubleshoot the issue.
Features:
It also Brands new and high-quality Force Motors Garuda BS-4 Cable. OBD-II Male to DB-15 Male Cable, OBD-II to DB15 Male Diagnostic cable.
For coupled with your diagnostic interface and your vehicle with obd2 scanner OBD-II compliant.
Moreover, The Length is about 200cm.
Weight is likely 282 gm.
OBD-II Plug is also a 16-pin male-to car.
Mainly, Used for diagnostic Force Motors Company Vehicles.
Cable core: 16 Core.
