Launch 3001 OBD Scanner For Bike BS6 Universal All Bike Cable Heavy Duty Molded Wire Unbreakable Wire With All in BS-6 Cable

₹1899

  • For BS6 Bikes and Scooters
  • Package Includes:  OBD Cable 11 Types
  • Main function: Read & Remove Engine check light fault code
  • Fast connectivity
  • Easy to use
SKU: SMPL037 Category:

Description

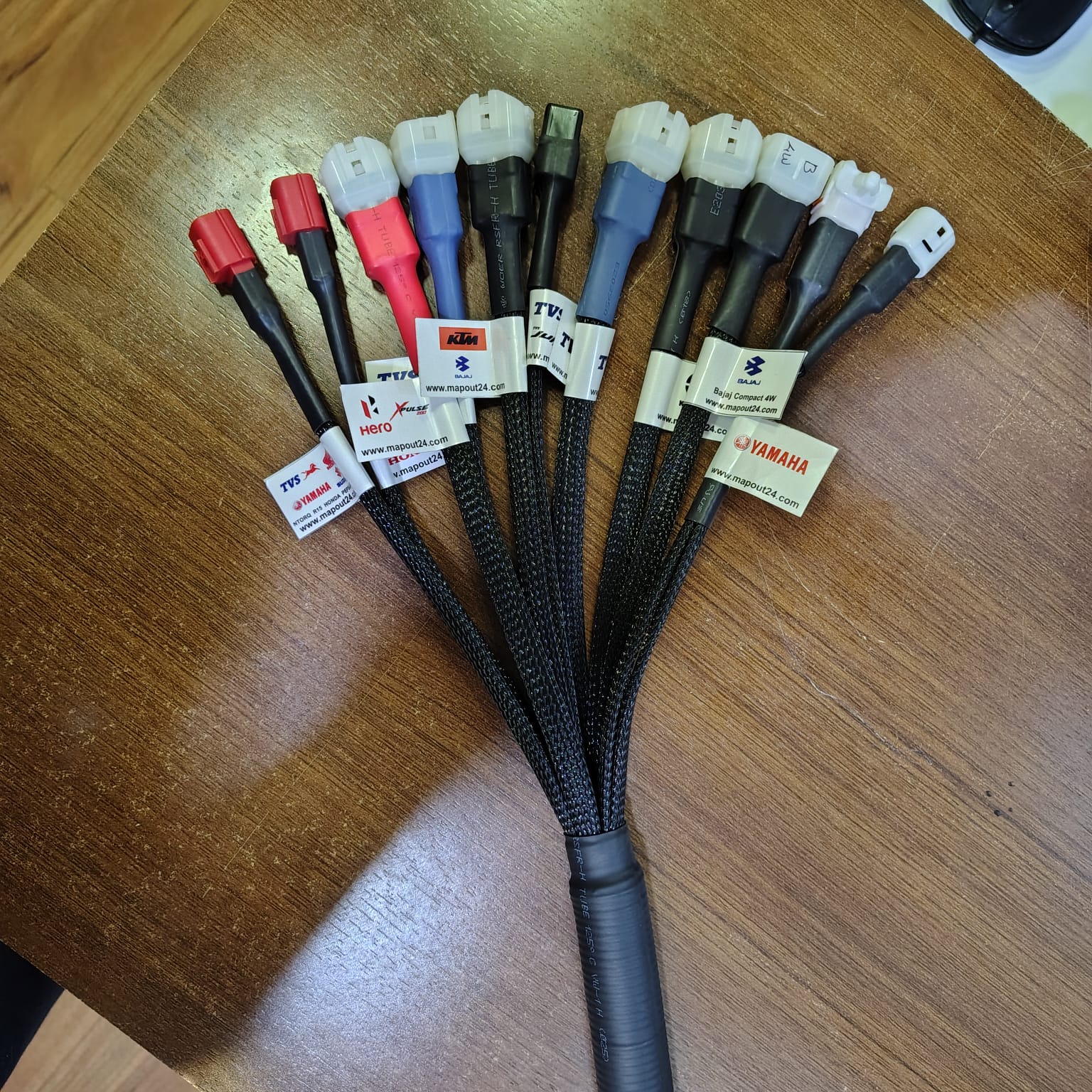

Mapout24 Bs6 OBD Cable 11 Types Universal Cables Two Wheeler diagnosis cable

Bs6 bike OBD Scanner Cable with all-in-one coupler works with all bs6 bikes.

OBD2 elm 327 Bike Scanner, On-Board Diagnostics cable for Honda, Suzuki, Yamaha, Bajaj, TVS, TVS Jupiter, KTM, Hero, Royal Enfield bike Scanner OBD Cable, Premium Quality long lasts for A Year

Made from FR series OBD Cable, Made In India, OBD2 Bike Scanner Cable, Honda, Suzuki, Yamaha, Bajaj, TVS,TVS Jupiter,  KTM, Hero, Royal Enfield bike Scanner OBD Cable for bike Scanner

Compatible with all Honda, Suzuki, Yamaha, Bajaj, TVS, TVS Jupiter, KTM, Hero, Royal Enfield  scooters, and motorcycles (BS 4 It also BS 6 type)

Supports all BS 4 and BS 6 bike scanners

Supports reading & Clearing fault codes for checking engine lights. (No support for ABS).

OBD Connector in Bike Scanner Cable BS4/6 :

OBD2 elm 327 Cable all-in-one coupler BS4/6 is an improvement over OBD-II in both capabilities. It is also standardization.

In OBD2 Bike Scanner Cable BS4/6  OBDII Connector standard specifies the type of diagnostic connector and its pinout, the electrical signaling protocols available, It also messaging format. It also provides a candidate list of vehicle parameters to monitor and how to encode each data. There is a pin in the connector that provides power for the scan tool from the vehicle battery, it also eliminates the need to connect a scan tool to a power source separately.

In OBD2 Bike Scanner Cable BS4/6  OBDII Connector standard specifies the type of diagnostic connector and its pinout, the electrical signaling protocols available, It also messaging format. It also provides a candidate list of vehicle parameters to monitor and how to encode each data. There is a pin in the connector that provides power for the scan tool from the vehicle battery, it also eliminates the need to connect a scan tool to a power source separately.

Universal OBD2 Connector in OBD2 Cable BS4/6

Female OBD-II connector on a car Female OBD Connector connector pinout – front view. The OBDII specification provides for a standardized hardware interface—the female 16-pin (2×8) J1962 connector. Unlike the OBD-I connector, which was sometimes found, under the hood of the vehicle. It is also required to be within 2 feet (0.61 m) of the steering wheel. used in Honda, Suzuki, Yamaha, Bajaj, TVS, KTM, Hero, Royal Enfield bike Scanner OBD Cable bike Scanner.

SAE J1962 defines the pinout of the connector as:

The amount of diagnostic information available via OBD2 Bike Scanner Cable BS4/6  OBDII has varied widely since its introduction in the early 1980s versions of onboard vehicle computers.

OBD2

That is your car telling you there is an issue. If you visit a mechanic, he will use a diagnostic to detect the issue.

To do so, he will connect the OBD2 reader to the OBD2 16-pin connector near the steering wheel.

This lets him read OBD2 codes aka Diagnostic Trouble Codes (DTCs) to review and troubleshoot the issue.

Features:

Brand new and high-quality Bs6 bike OBD Scanner elm 327 all-in-one coupler cable.

Used in Honda, Suzuki, Yamaha, Bajaj, TVS, TVS Jupiter KTM, Hero, Royal Enfield bike Scanner OBD Cable bike Scanner.
For connecting your diagnostic interface and your vehicle with OBD-II compliant
Length: About 200cm
Weight: 300gm
OBD-II Plug: 16-pin male to car
Mainly Used for diagnostic OBD2 Bike Scanner Cable BS4/6  Engine Company Vehicles
Cable core: 8 Core
