Description
V Connect Plus Cable for Tata Motors:
V Connect Plus Cable for Tata Motors.OBD Connector degree is an improvement over OBD-II in both capability and standardization. The OBDII Connector standard specifies the type of diagnostic connector and its pinout, the electrical signalling protocols available, and the messaging format. It also provides a candidate list of vehicle parameters to monitor along with how to encode the data for each. There is a pin in the connector that provides power for the scan tool from the vehicle battery, which eliminates the need to connect a scan tool to a power source separately.
Universal OBD2 Connector:
That is your car telling you there is an issue. If you visit a mechanic, he will use an OBD2 scanner to diagnose the issue.
To do so, he will connect the OBD2 reader to the OBD2 16 pin connector near the steering wheel.
This lets him read OBD2 codes aka Diagnostic Trouble Codes (DTCs) to review and troubleshoot the issue.
V Connect Plus Cable for Tata Motors OBD2:
| Pin Number | Pin Name | Description |
| 1,3,8,9,11,12,13 | Blank | These pins are not standard and are vendor-specific. It also not required for normal communication/interfacing |
| 2 | SAE J1850 Bus+ | This protocol uses Variable Pulse Width and is normally used by GM vehicles. It also Bus positive pin of the protocol. |
| 10 | SAE J1850 Bus- | This protocol uses Variable Pulse Width and is normally used by GM vehicles. It also Bus negative pin of the protocol. |
| 4,5 | Ground | The ground of complete system of the Car including chassis |
| 6 | ISO15765-4 CAN High | It follows a 2-wire CAN protocol at 1Mbps speed. It also CAN high Pin |
| 14 | ISO15765-4 CAN Low | It follows a 2-wire CAN protocol at 1Mbps speed. It also CAN low Pin |
| 7 | ISO 9141 – K Line | It follows asynchronous serial communication protocol, It also Kline Pin |
| 8 | ISO 9141 – L Line | It follows asynchronous serial communication protocol, It also L line Pin |
Features

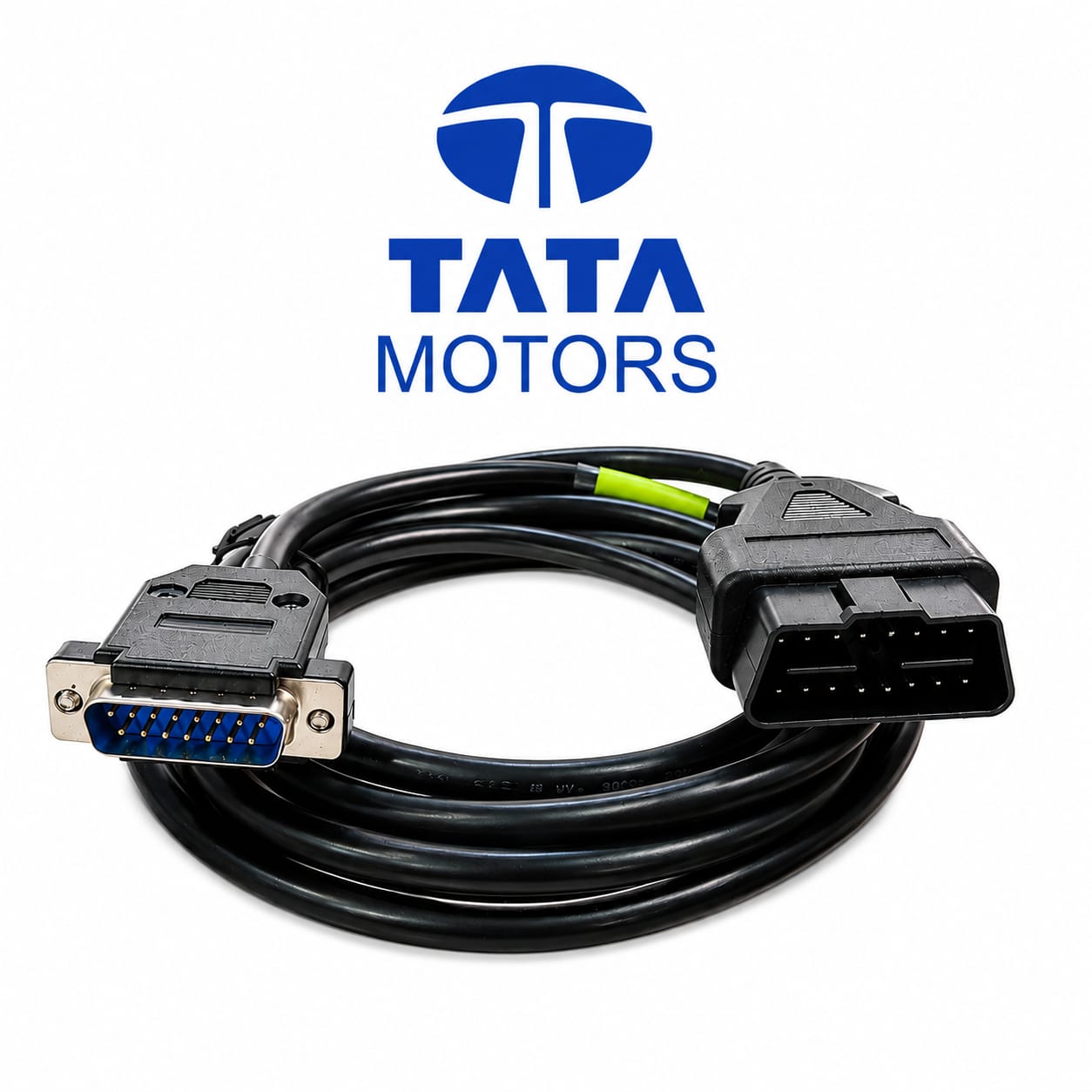

- Brand new and high quality OBD-II to DB15 Male Diagnostic cable.
- For connecting your diagnostic interface and your vehicle with OBD-II compliant
- Length: About 200cm
- Weight : 153gm
- OBD-II Plug: 16-pin male to car
- Mainly Used for diagnostic Tata Company Vehicles
PRICING:
| Qty. | Unit Price |
| 1-10pcs | 1300 Rs/Pc |
| 11-20pcs | 1170 Rs/Pc |
| 21-30pcs | 1060 Rs/Pc |
| 31-50pcs | 940 Rs/Pc |
| >50pcs | 800 Rs/Pc |
Reviews
There are no reviews yet.
